Part / Feature
Specification / Support
Motherboard description
Motherboard manufacturer's name: Pegatron M2N68-LA
/Compaq name: Narra6-GL6
CPU/Processor
Socket: AM3 only
HyperTransport 1.0 only
2000 MT/s (2.0 GT/s) or 1600 MT/s (1.6 GT/s), depending on the processor.
Memory support is DDR3 modules only.
Supports the following processors:
AMD Phenom II X4 9xx/9xxe/8xx Quad-Core (D)
AMD Phenom II X3 7xx/7xxe Triple-Core (H)
AMD Phenom II X2 5xx (C)
AMD II Athlon X4 6xx/6xxe (P)
AMD II Athlon X3 4xx/4xxe (R)
AMD II Athlon X2 2xx/2xxe (R)
AMD Sempron 1xx (S)
Max TDP = 95 Watt
Front-side bus (FSB)
HyperTransport 1.0 ONLY, based on the NVIDIA GeForce chipset requirements
2000MT/s (2.0 GT/s)
Chipset
NVIDIA GeForce 6150SE nForce 430
BIOS features
Keyboard combination to used to enter BIOS: F10
System BIOS core brand: Award
Form factor
9.6" (24.5 cm) x 9.6" (24.5 cm)
Memory
Dual channel memory architecture
Two DDR3 DIMM (240-pin) sockets
Supported DIMM types:
PC3-8500 (DDR3-1066)
PC3-10600 (DDR3-1333)
Non-ECC memory only, unbuffered
Supports 2GB DDR2 DIMMs
Supports up to 4 GB* on 32 bit PCs
NOTE: *32-bit operating systems cannot address a full 4.0 GB of memory.
Expansion slots
One PCI
One PCI Express x16 graphics (for a graphics card)
Two PCI Express x1 (for cards such as network, sound, tv-tuner)
Video graphics
Integrated graphics using nVidia GeForce 6150SE
Also supports PCI Express x16 graphics cards*
NOTE: *Either integrated graphics or the PCI Express x16 slot are usable at one time; they are not usable concurrently.
Serial ATA
Four SATA connectors:
SATA0 = Blue
SATA1 = White
SATA2 = Light Blue
SATA3 = Yellow
Supports 1 SATA-150 or SATA-300 disk drive on each SATA connector
Speed up to 1.5Gb/sec or 3.0Gb/sec, complying with SATA 1.0 and SATA 2.0 specifications
NOTE: The faster rate of 3.0Gb/sec requires that both the hard drive and the motherboard support it. If one or the other does not support 3.0 Gb/sec, the PC negotiates down to the slower 1.5 Gb/sec.
Onboard audio
6 channel high-definition audio
Audio CODEC: ALC888S
Onboard LAN
Realtek RTL8201N 10/100Mbps
Onboard USB
USB 2.0
Ten ports total
Four connectors on back panel
Four additional headers on motherboard support 6 additional ports/devices
NOTE: Some USB ports may not be available externally for customer use. For more information, see model specifications.
Back panel I/0
One VGA port
Four USB 2.0
One RJ-45 networking port
Stereo-mini audio jacks for:
Microphone-in (pink)
Line-out (lime)
Line-in (light blue)
Internal connectors
One CPU fan connector
One 24-pin ATX power connector
One 4-pin ATX power connector
One ROM recovery connector
Four SATA connectors
One ROM recovery connector
One jumper for resetting BIOS settings
One jumper to clear the BIOS password setting
One system panel connector
One AC Power Loss Restart Selector
Four USB headers, supporting 6 USB connections
One S/PDIF out connector
One Front audio connector for headphone and microphone
One chassis fan connector
Item specifics

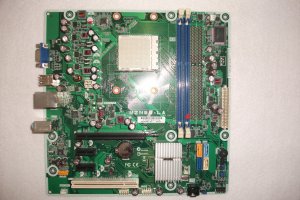

Motherboard 612501-001 Pegatron For HP C61 M2N68-LA CPU AMD DDR3 Socket AM3 mainboard tested Looks new DHL free shipping!!!
motherboard 612501-001 Pegatron For HP C61 M2N68-LA
system board 612501-001 Pegatron For HP C61 M2N68-LA
mainboard 612501-001 Pegatron For HP C61 M2N68-LA
